Aluminium Doors & Windows

At AZ Windows, we specialize in crafting premium aluminium windows and doors in India that combine timeless elegance with unmatched durability. Whether you're in Hyderabad, Mumbai, Pune, Bangalore, Ahmedabad, Delhi, Lucknow, Jaipur, Indore, Udaipur, Goa, Guwahati, Visakhapatnam, or Punjab, our solutions are tailored to suit your architectural needs. We offer slimest window solutions designed for modern aesthetics, ensuring sleek and sophisticated designs.

Advantages:

Lead Free
Strength
& durability
Highly
Secure
Corrosion
Proof
Weather
Proof
Fire
Proof
Noise
Proof
Termite
Resistance
Pollution
Resistance
Easy
Install
Recyclable
Energy
Efficiency

Product Range

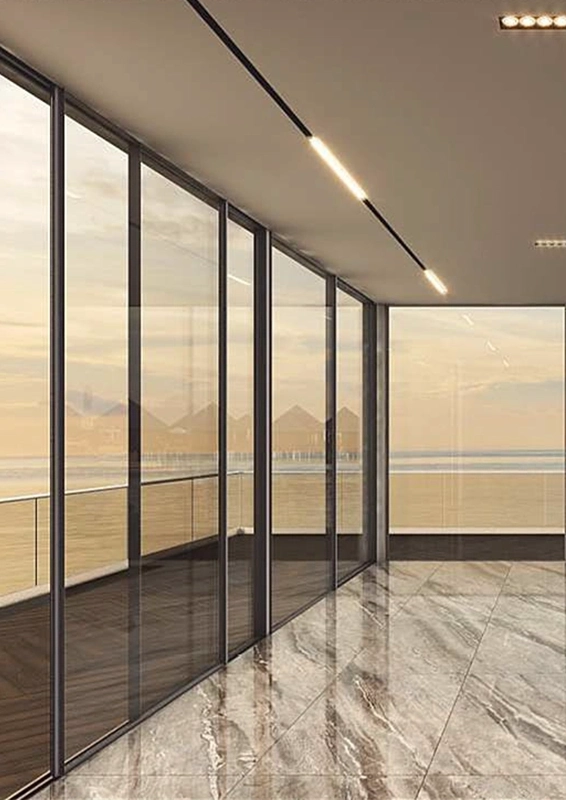

AZ 17 Minimum

AZ 17 Minimal - SLEEK LINES, ENDLESS VIEWS.

AZ 17 Minimal redefines elegance with its sleek profile, maximizing views and bringing sophistication to any space.

Specification

Profile alloy	6063
Glass thickness	Min 12mm / Max 26mm
Max Height/Shutter	5200 mm
Max Weight/Shutter	700 kg
Multi Locking	Yes
Mosquito Mesh Solution	Yes
Hidden Bottom	Yes
Corner Opening	Yes
Roller Bearings (320 KG/ Per Bearing)	S.S. 304 Grade
Stainless Steel Rail	S.S. 304 Grade

Frame Height	42 mm
Frame Width (2T)	114 mm
Frame Width (3T)	175 mm
Sightline At Interlock	17 mm
Sound Insulation	35 db
Wind Load Resistance	Up To 2.5KPa
Air Permeability	300Pa
Water Tightness	390 Pa

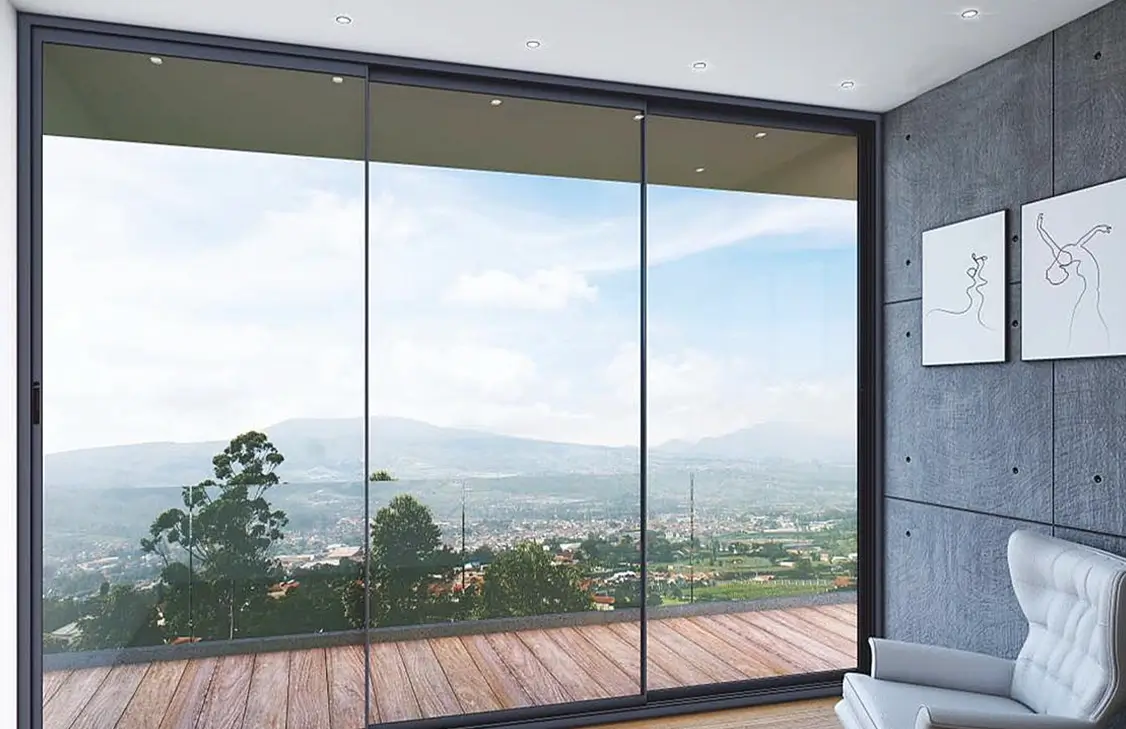

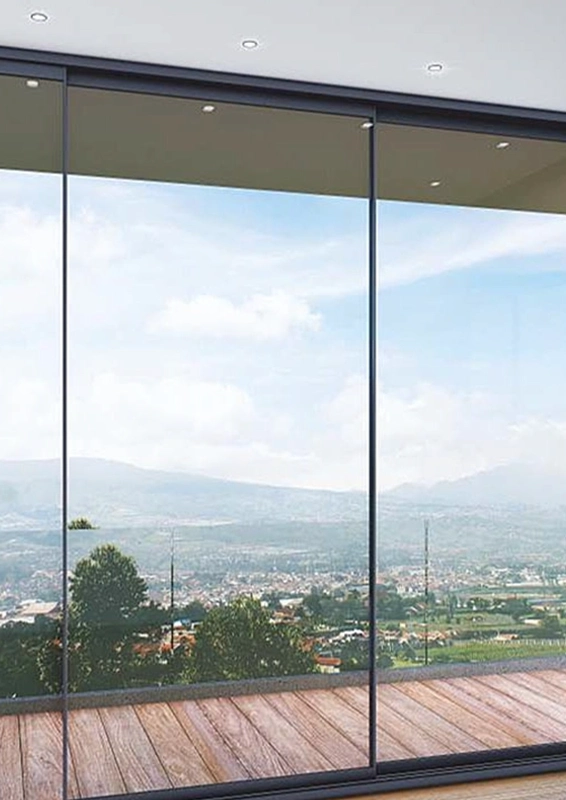

AZ 15 Sleek

AZ 15 Sleek - STREAMLINED FOR MODERN LIVING.

Minimal design that enhances any architectural space while maximizing natural light. Its refined profiles provide a perfect blend of modern aesthetics and superior performance.

Specification

Profile Alloy	6063
Glass Thickness	06mm to 20mm
Max Height/Shutter	3200 mm
Max Weight/Shutter	350 kg
Multi Locking/Single Point Locking	Yes
Mosquito Mesh Solution	Yes
Corner Opening	Yes
Roller Bearings	S.S. 304 Grade/Nylon
Stainless Steel Rail	Yes
Frame Height	43 mm

Frame Width (2T)	72 mm
Frame Width (3T)	115 mm
Frame Width (4T)	158 mm
Sightline At Interlock (Option)	15mm, 25mm, 65mm
Sound Insulation	30 db
Wind Load Resistance	Up To 2KPa
Air Permeability	250Pa
Water Tightness	340Pa

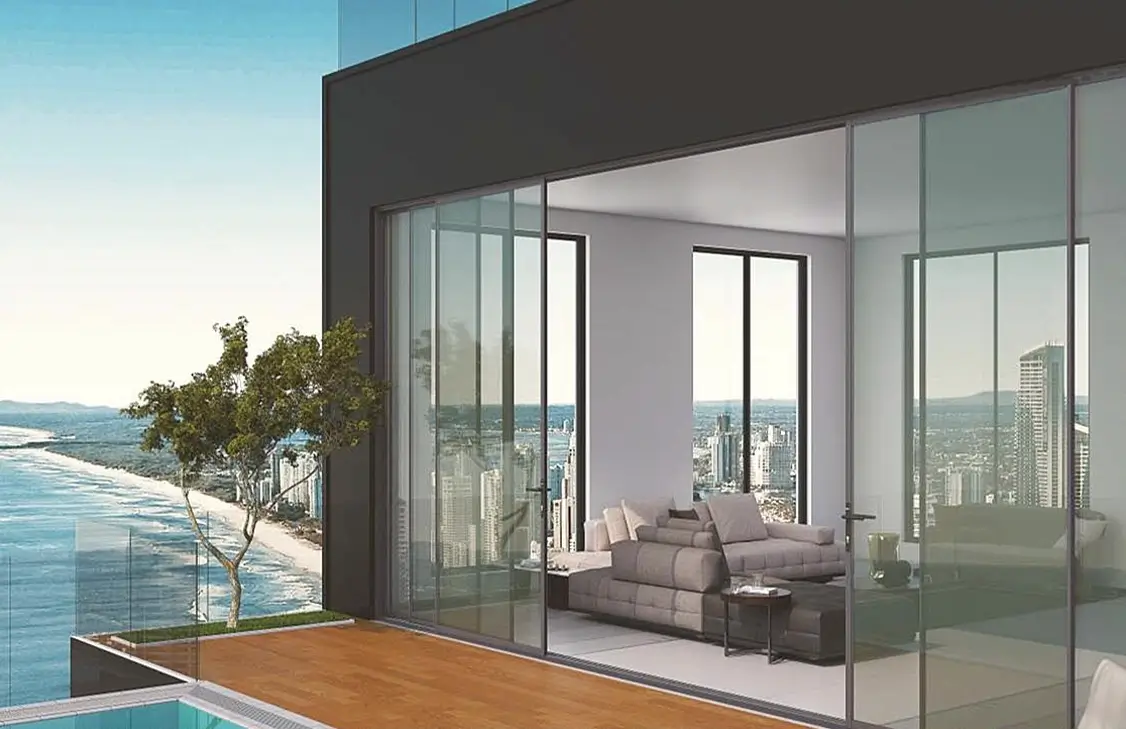

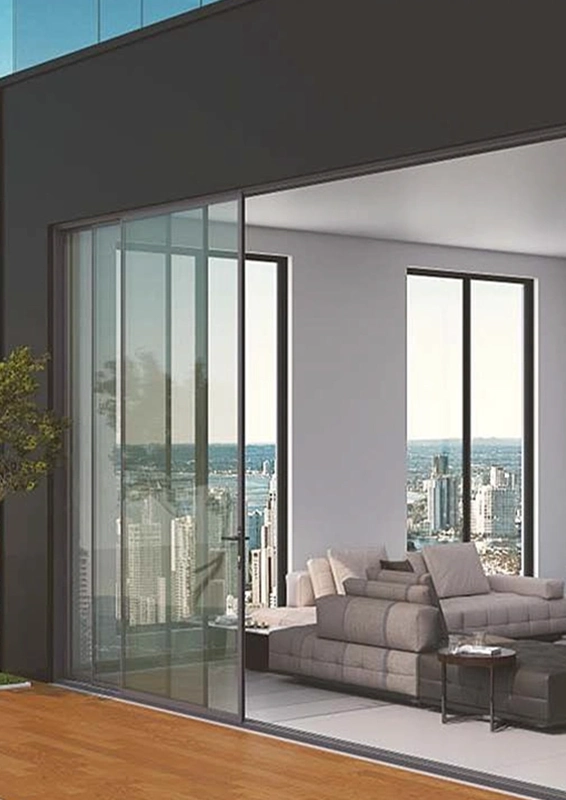

AZ 25 Sleek-Series

Made for high-end living, this window blends modern sophistication with exceptional strength.

Specification

Profile alloy	6063
Glass thickness	Min 12mm / Max 26mm
Max Height/Shutter	5200 mm
Max Weight/Shutter	700 kg
Multi Locking	Yes
Mosquito Mesh Solution	Yes
Hidden Bottom	Yes
Corner Opening	Yes
Roller Bearings (320 KG/ Per Bearing)	S.S. 304 Grade
Stainless Steel Rail	S.S. 304 Grade
Frame Height	42 mm
Frame Width (2T)	114 mm

Frame Width (3T)	175 mm
Sightline At Interlock	17 mm
Sound Insulation	35 db
Wind Load Resistance	Up To 2.5KPa
Air Permeability	300Pa
Water Tightness	390 Pa

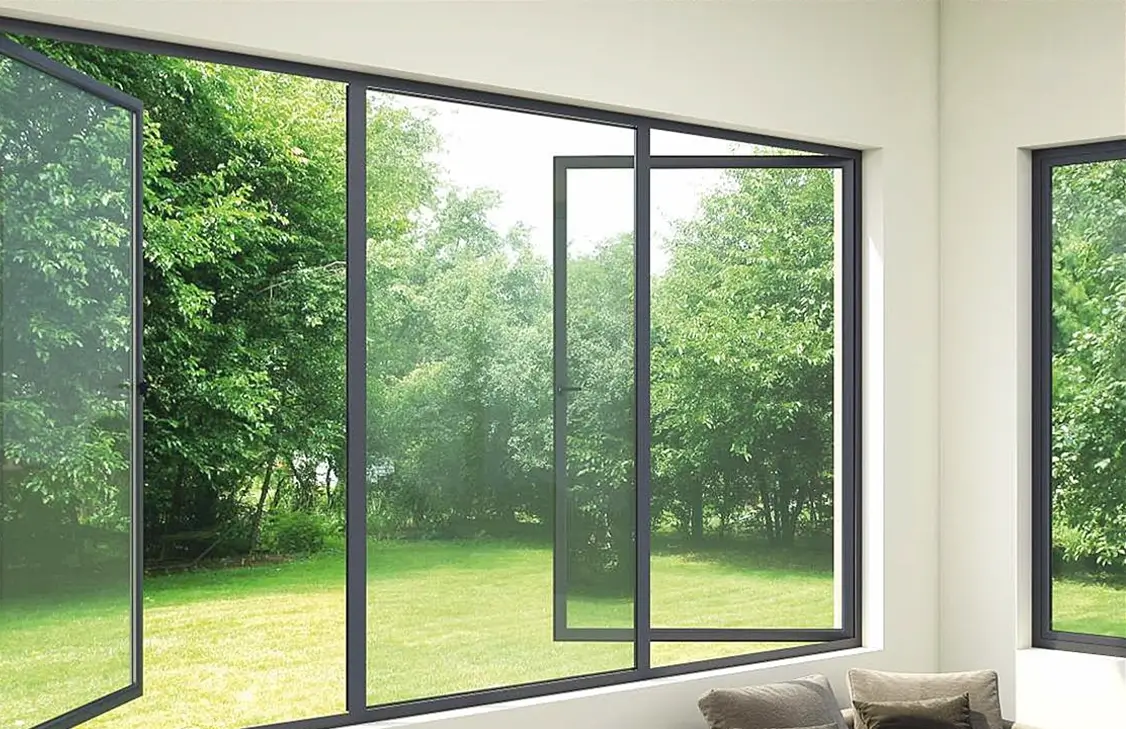

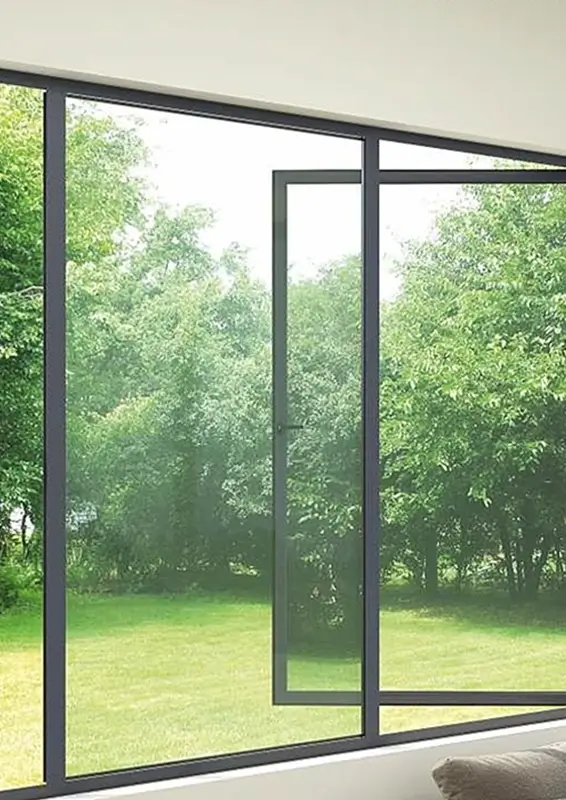

AZ 45 Moon Light

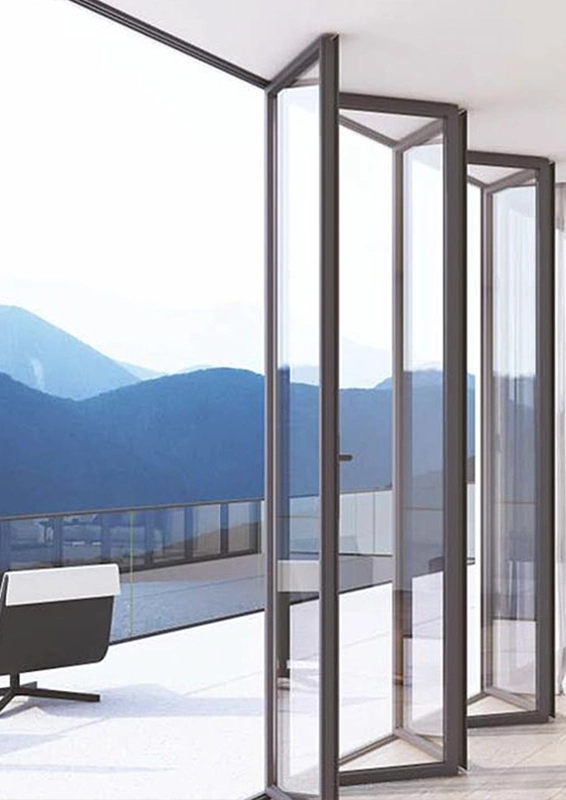

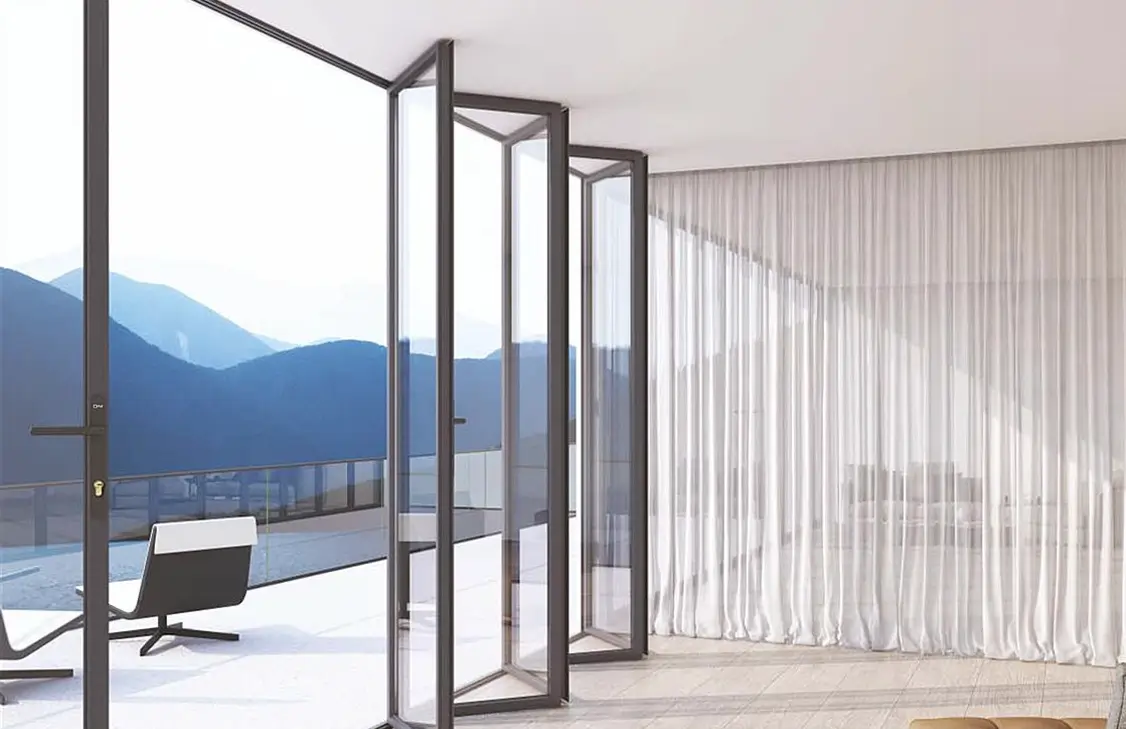

Slide & fold Aluminium
windows & doors

Minimal design that enhances any architectural space while maximizing natural light. Its refined profiles provide a perfect blend of modern aesthetics and superior performance.

Specification

Opening	Inside/Outside
Profile alloy	6063
Glass thickness	06mm to 32mm
Security Option	16mm S.S. Shoot Bolt System
Max Width/Shutter	900mm
Max Height/Shutter	3300mm
Max Weight/Shutter	150 Kgs
Multi Locking	Yes
Mosquito Mesh Solution	Yes
Hinge	S.S. 304 Grade

Stainless Steel Rail	Double S.S. 304 Rail
Frame Height	70mm INSIDE X 50mm OUTSIDE
Frame Width	70mm
Shutter	60mm X 79mm
Sightline At Shutter	125mm
Sound Insulation	35 db
Wind Load Resistance	Up To 1.2KPa
Air Permeability	600Pa
Water Tightness	600Pa
